Paper Cup Lid Making Machines
Paper Cup Lid Making Machines mold pulp into durable, eco-friendly packaging like trays, clamshells, and containers using heat and pressure, making them ideal for food, electronics, and consumer goods industries.
Daily Capacity: 100,000 Pieces ±10% (Base On 80 / 90 mm Cup Lid, Punch Slurry Suction)
Main Features
Our advanced system enables the production of high-quality, eco-friendly molded fiber packaging with small draft angles (≥0.5°) and radii (≥0.3 mm), ideal for precise, high-end applications. Equipped with a prepress system that supports negative angles, it ensures excellent positioning accuracy and stable operation — perfect for premium packaging needs.

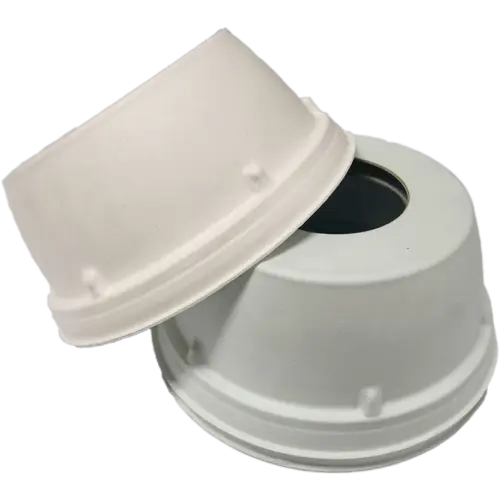

Using renewable plant fibers like bagasse, wheat straw, reed, and moso bamboo, this technology is widely used for beverage cup lids, 3C digital product packaging, cultural and creative items, gift boxes, cosmetics, wine bottles, instruments, medical devices, furniture, and milk powder spoons.
Technical Parameters

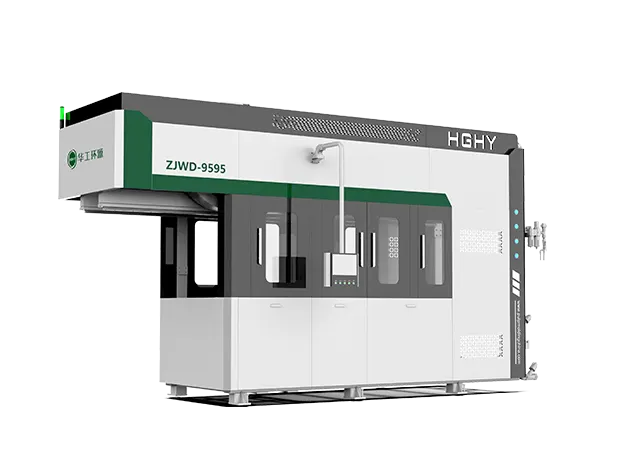

| Model | ZJWD-9595Y | ||
|---|---|---|---|
| Product Application | Coffee Cup Lid, Rigid Box, etc Packagings with Critical Draft Angle, R Angle or Complicated Structure | ||
| Daily Capacity | 100,000 Pieces ±10% | ||
| Platen Size | 950 × 950 mm | ||
| Heating Energy | Electricity / Thermal Oil | ||
| Forming Method | Punch, Reciprocating（Max 10 Tons Pressure） | ||
| Hotpress Method / Pressure | Hydraulic System / Max 60 Tons Pressure | ||
| Safety Protection | Self-locking & Auto-stop Design | ||
| Max Product Height / Thickness | 110 mm / 1 mm | ||
Great Feature

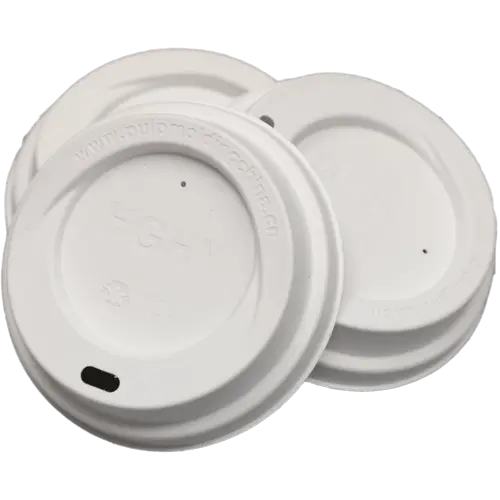

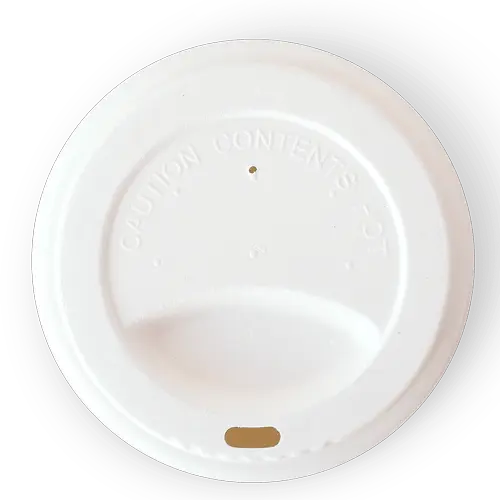

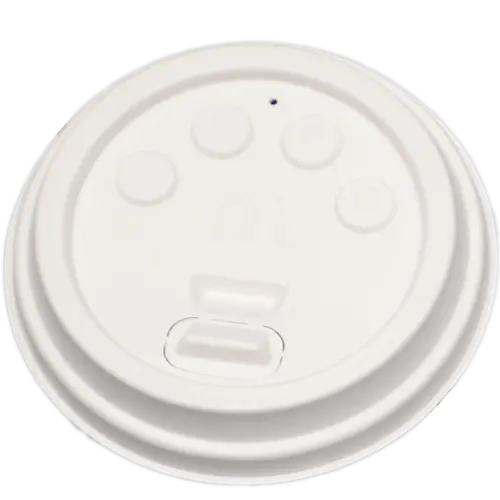

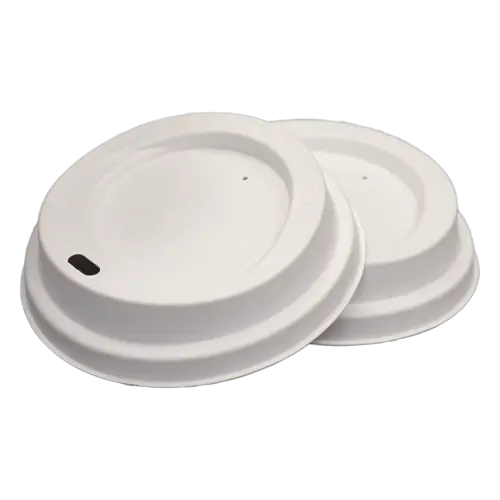

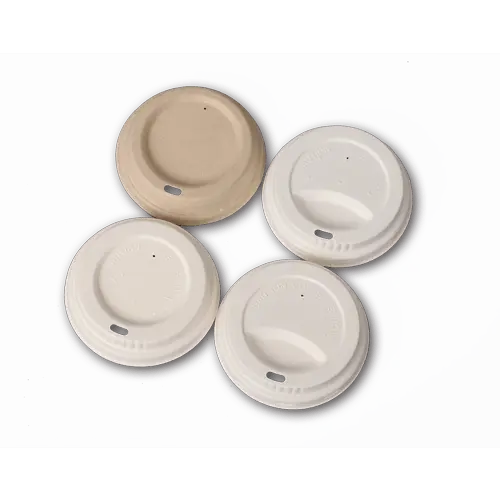

- Produces cup lids with angles below 0° (inverted) without edge hooping, ensuring accuracy.
- Forming and hot pressing are combined with trimming and punching, reducing costs despite high stalling rates.
- Achieves 0° demolding angle with R0.3 radius, ideal for intricate IP packaging.
High Precision & Innovation

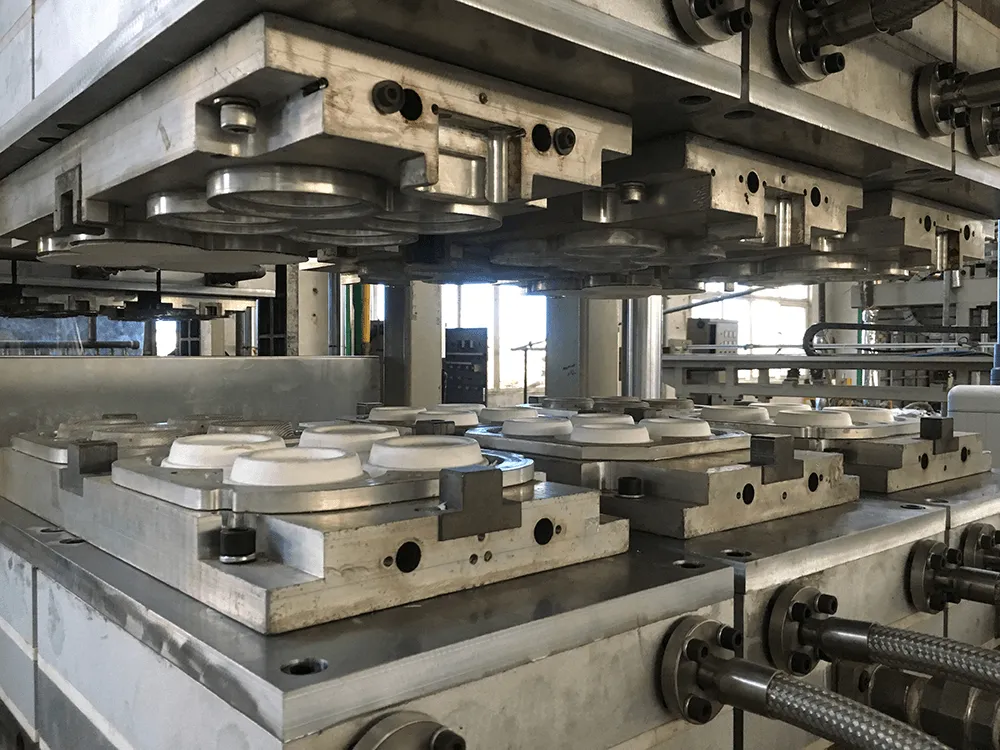

Our system delivers exceptional precision, capable of molding cup lids with angles less than 0° without edge hooping. It features an integrated forming and hot pressing design, combined with trimming and punching processes to maintain cost-efficiency. The 0° demolding angle with R0.3 radius ensures suitability for high-end IP packaging.
Efficiency & Investment Value
Driven by servo motors and managed via a PLC control interface, the equipment offers energy-efficient and seamless operation. With dual-stage hot press stations, it achieves high capacity and consistent product quality. Daily output reaches 650–800 kg depending on product specs, ensuring high ROI for premium packaging.
Durability & User-Friendly Design
Engineered with robust structure and additional reinforcements, this technology—pioneered in 2002—offers long-lasting durability. Its compact footprint saves space, and the automated system ensures safe, intuitive operation with straightforward maintenance.
